Raspberry Pi 3 & 4 B/B+

Raspberry Pi 4 Model B (2GB): $65
Raspberry Pi 4 Model B (4GB): $75
Raspberry Pi 3 Model B or B+: $43

Raspberry Pi 4

Specifications

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 1GB, 2GB or 4GB LPDDR4-3200 SDRAM (depending on model)
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
    Gigabit Ethernet
  • 2 USB 3.0 ports; 2 USB 2.0 ports.
  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
  • 2 × micro-HDMI ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
    H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.0 graphics
  • Micro-SD card slot for loading operating system and data storage
  • 5V DC via USB-C connector (minimum 3A*)
  • 5V DC via GPIO header (minimum 3A*)
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)
  • Operating temperature: 0 – 50 degrees C ambient

* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.

Raspberry Pi 3 & starter kits

Raspberry Pi 3 Model B & B+ starter kit

$69 (16GB); $79 (32GB); $99 (64GB); $129 (128GB)

  • One microSD card 16GB (class 10), a case (with or without built-fan), 3 heat sinks, a power adapter, and a mouse

Technical Details:

  • RAM: 1 GB
  • Wireless Type: 802.11bgn
  • Number of USB 2.0 Ports: 4
  • Brand Name: Raspberry Pi
  • Item model number: RASP-PI-3
  • Item Weight: 2.1 ounces
  • Product Dimensions: 4.8 x 3 x 1.3 inches
  • Item Dimensions L x W x H: 4.8 x 2.99 x 1.34 inches
  • Processor Count: 4

Built on the latest Broadcom 2837 ARMv8 64bit processor the Raspberry Pi 3 Model B is faster and more powerful than its predecessors. It has improved power management to support more powerful external USB devices and now comes with built-in wireless and Bluetooth connectivity.

To take full advantage of the improved power management on the Raspberry Pi 3 and provide support for even more powerful devices on the USB ports, a 2.5A adapter is required. Made in the U.K. supplied under license by RS Components.

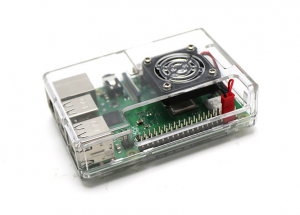

Transparent case

Technical Specifications for Raspberry Pi 3 Model B

  • Broadcom BCM2837 64bit ARMv8 QUAD Core 64bit
  • Processor powered Single Board Computer running at 1.2GHz
  • 1GB RAM – BCM43143 WiFi on board
  • Bluetooth Low Energy (BLE) on board – 40pin extended GPIO
  • 4 x USB2 ports – 4 pole
  • Stereo output and Composite video port
  • Full size HDMI – CSI camera port for connecting the Raspberry Pi camera
  • DSI display port for connecting the Raspberry Pi touch screen display
  • MicroSD port for loading your operating system and storing data
  • Upgraded switched
  • Micro USB power source (now supports up to 2.5 Amps)

Technical Details for Raspberry Pi 3 Model B+

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range.

  • Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
  • 1GB LPDDR2 SDRAM
  • 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
  • Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
  • Extended 40-pin GPIO header
  • Full-size HDMI
  • 4 USB 2.0 ports
  • CSI camera port for connecting a Raspberry Pi camera
  • DSI display port for connecting a Raspberry Pi touchscreen display
  • 4-pole stereo output and composite video port
  • Micro SD port for loading your operating system and storing data
  • 5V/2.5A DC power input
  • Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Raspberry Pi Zero W product page is here!

Available in our shop in Phnom Penh, Cambodia. We also supply the Raspberry Pi products to schools and factories in Cambodia. Contact us for multiple orders.
