Description
Available soon!
4GB/8GB/16GB/32GB LPDDR4/4x, a variety of memory capacity options to meet the needs of different users
8K video codec for clearer images and more detailed picture quality
Wide range of application scenarios covering various industries of AIoT
It can be widely applied to high-end tablet, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home and other fields, covering AIoT various industries.
Hardware Specification

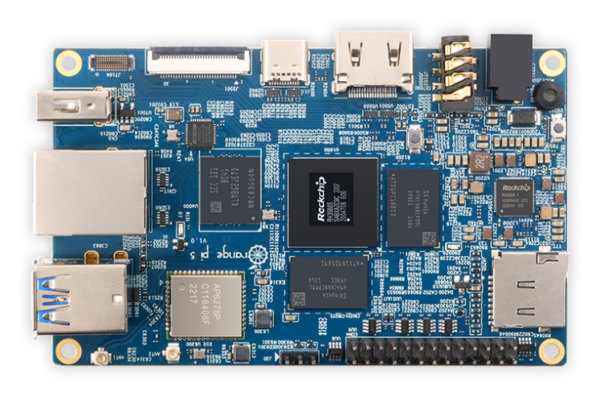

| SoC | Rockchip RK3588S (8nm LP process) |
| CPU | • 8-core 64-bit processor • Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency. |
| GPU | • Arm Mali-G610 MP4 “Odin” GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 • Max resolution: 8192×8192 source, 4096×4096 destination |
| NPU | Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation |
| PMU | RK806-1 |
| RAM | 4GB/8GB/16GB /32GB（LPDDR4/4x） |
| Memory | • 32GB eMMC • MicroSD (TF) Card Slot |
| USB | USB3.0 × 1 USB2.0 × 2 Type-C (USB3.1) ×1 |
| Video Output | • HDMI2.1, up to 8K @60Hz • DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C • 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz |
| Camera | • MIPI CSI 4Lane • 2 * MIPI D-PHY RX 4Lane |
| Audio | CODEC: ES8388 • 3.5mm headphone jack audio input/output • Input: Onboard MIC • HDMI 2.1 eARC |
| Wireless Network | On-board module: AP6275P • WIFI 6.0, 2.4GHz/5GHz dual-band WiFi, support IEEE 802.11a/b/g/n/ac/ax protocol, 2T2R • Bluetooth 5.0, supports BLE |
| Ethernet | 10/100/1000Mbps Ethernet (YT8531B ) |
| Expansion Port | 26Pin double row pins, supports up to: 2×UART; 3 ×PWM; 2 ×IIC; 1×SPI; 1 ×CAN; 1 ×PWR_ON; 15×GPIO, these functions are multiplexed and cannot be supported at the same time. |
| Button | 1×MaskROM key 1×Reset key |
| Power Source | • Support DC power supply 5V4A; • Support Type-C power supply, there is USB PD3.0 protocol control chip HUSB311 on board |
| LED | Power indicator: red Status indicator: green |
| Debugging | 3 Pin debug serial port (UART) |
| Supported OS | Android12 , Debian11 |
